Wiring GRIDI
Approx 2200 hand soldered wires.

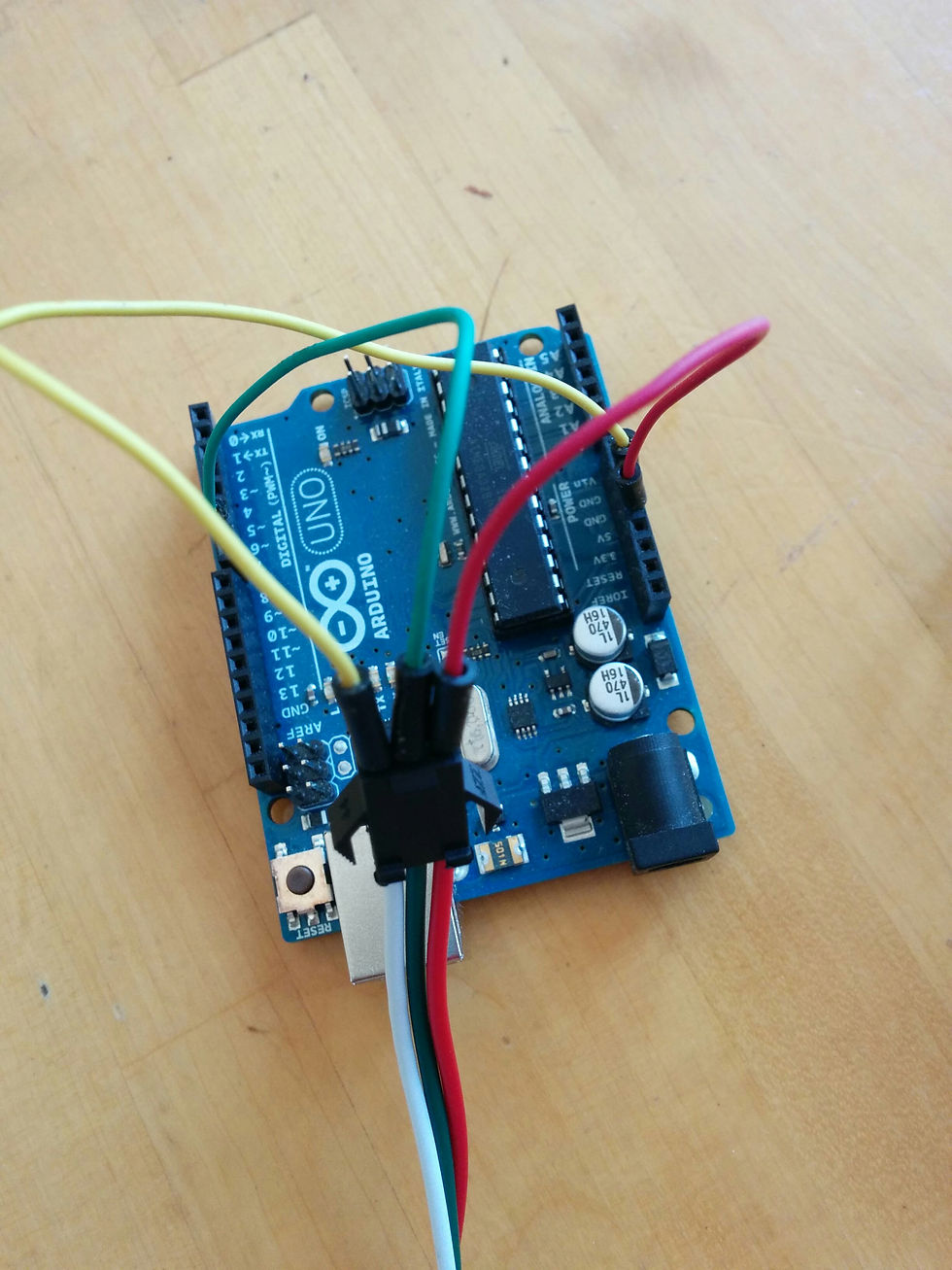

Arduino used to connect GRIDI
Arduino is the microcontroller used to communicate between gridi and the computer.
Looking for the perfect ball for GRIDI

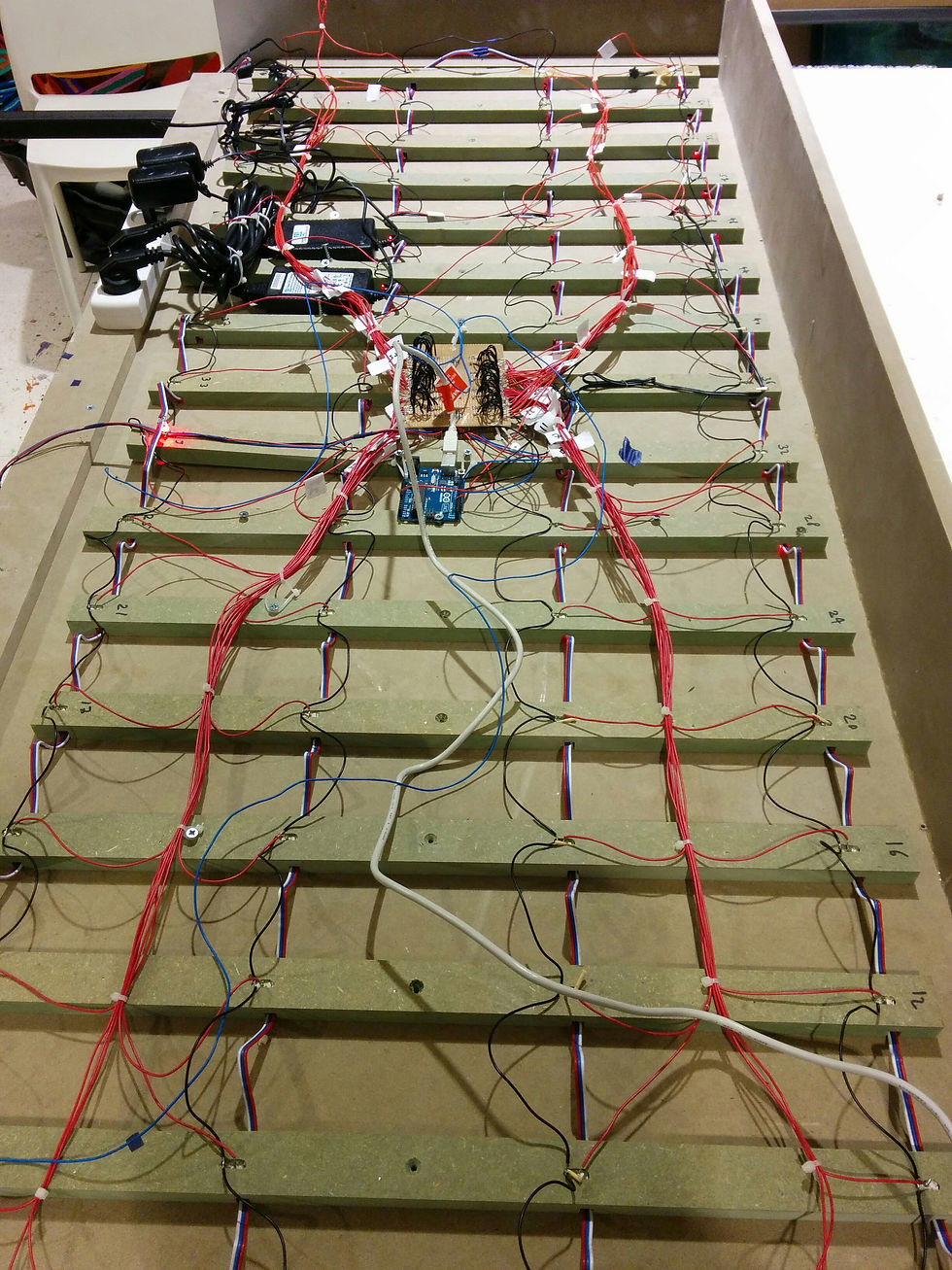

Underneath GRIDI board number one
The wiring under the hood of GRIDI. You can also see on of the custom pcb boards and the arduino attached.
Working on GRIDI

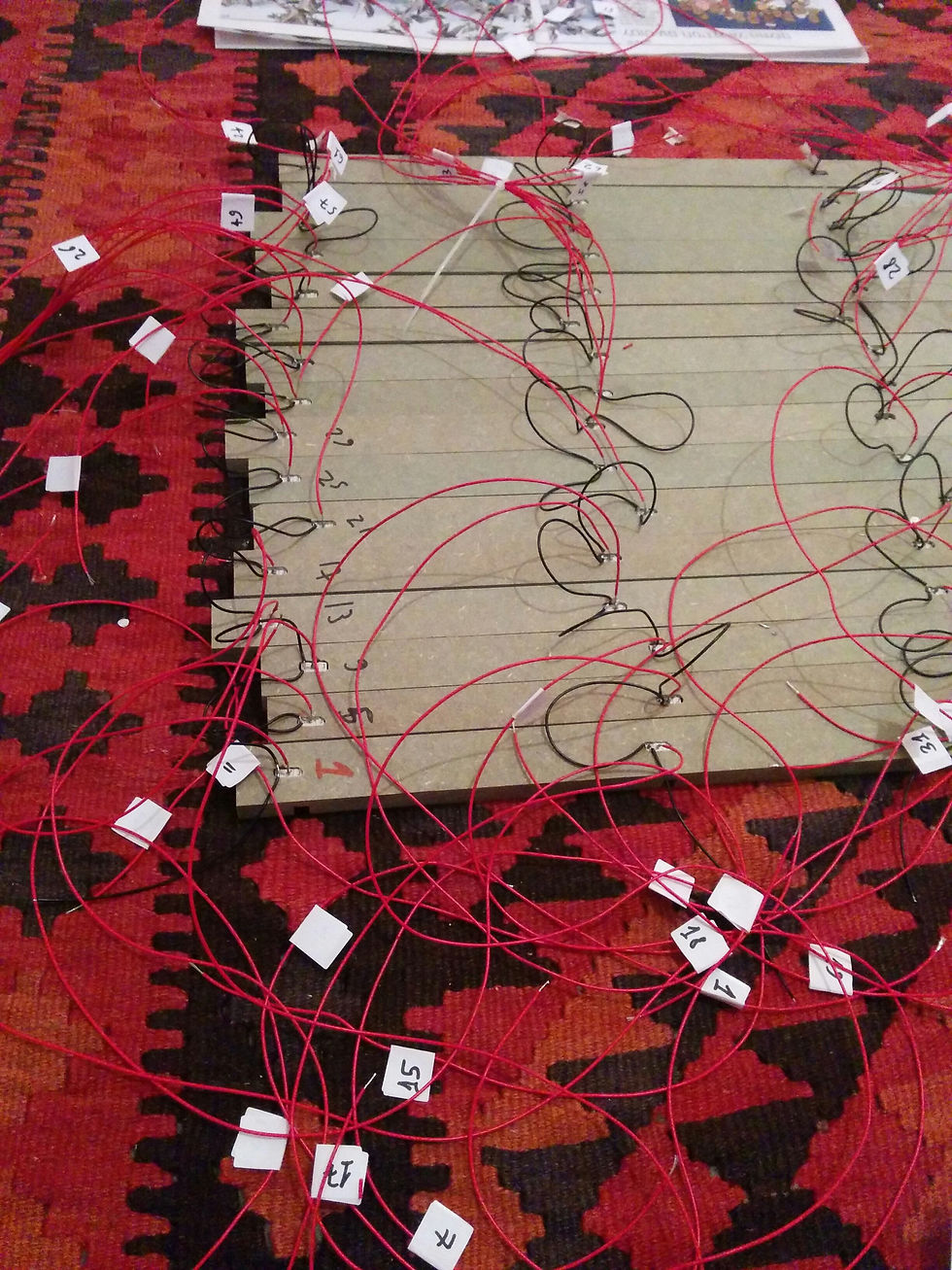

Wiring GRIDI
We had some amazing people working on wiring gridi and getting it just right. It was nights and days and a lot of stress, but was all worth it in the end.
Wires for GRIDI
The wires were all in different lengths and had to be measured accurately.
PRE wired LEDs
Fortunately the LEDs were pre wired so that saved a lot of work.
Plain plate before cutting GRIDI
GRIDI was created with love and dedication, through a process of building and programming everything from scratch. Here are some images from behind the scenes.
